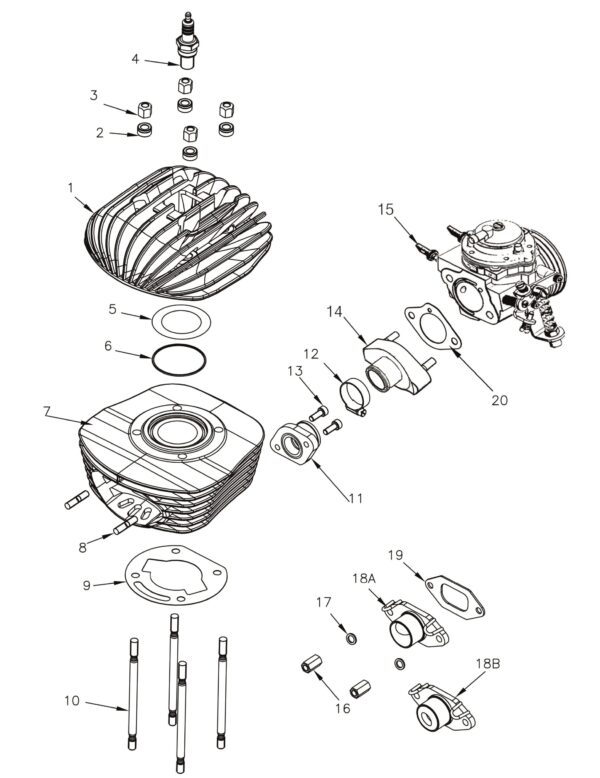

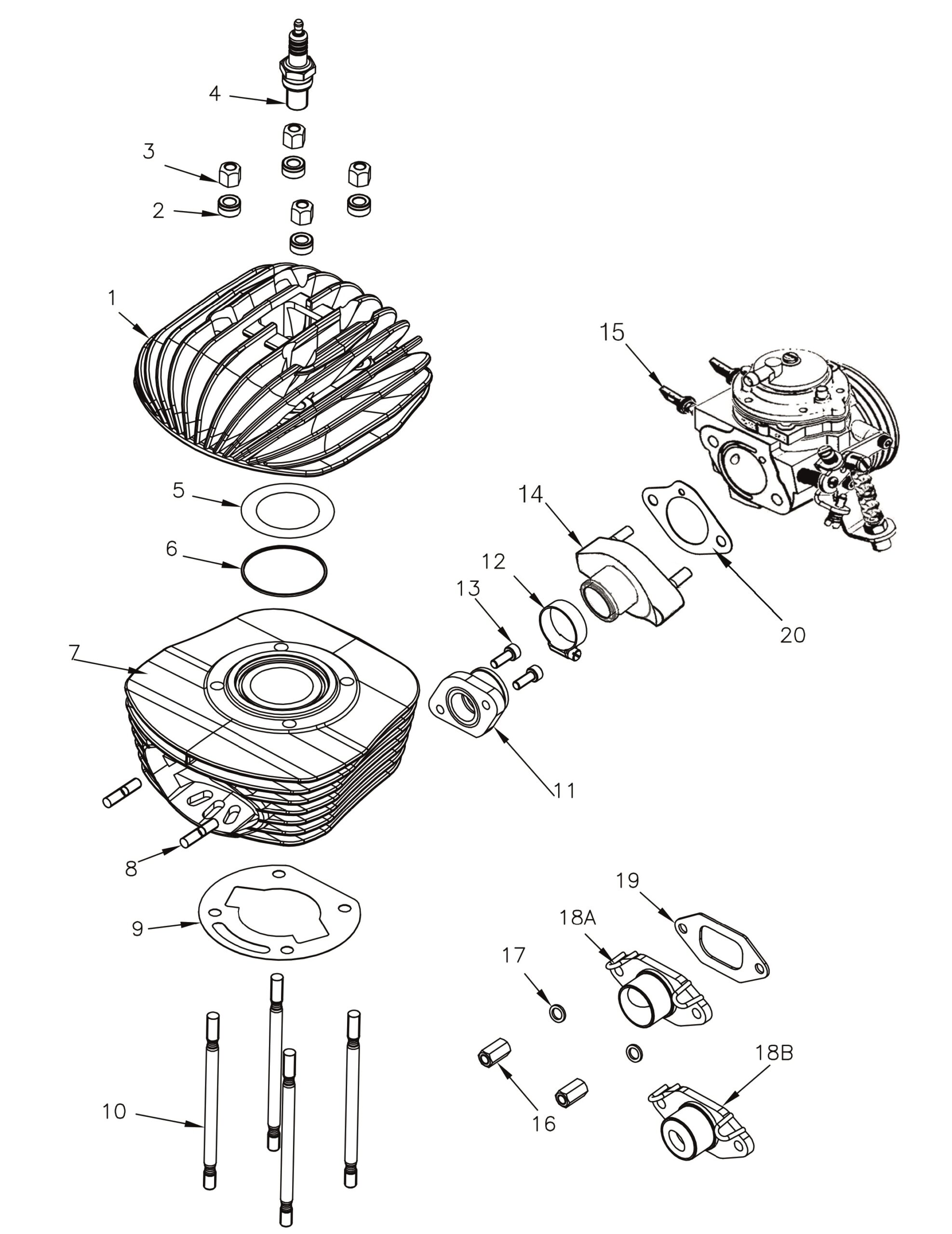

Mini Rok - S1 - Parts | 1 – Mini Rok air head, 2 – Head washer 8.5x15x8, 3 – Head-nut high-set M8 ZNB, 4 – Spark plug NGK b10 eg, 5 – Mini Rok/MR3 copper head gasket 42.2×62.4x 0.05, 5 – Mini Rok/MR3 copper head gasket 42.2×62.4x 0.1, 5 – Mini Rok/MR3 copper head gasket 42.2×62.4x 0.2, 6 – Kid-Mini Rok-Mr3 o-ring head 2212, 7 – Complete cylinder Mini Rok, 8 – Exhaust stud bolt M7x32, 9 – Mini Rok cylinder basis gasket 0.2, 9 – Mini Rok cylinder basis gasket 0.3, 9 – Mini Rok cylinder basis gasket 0.4, 9 – Mini Rok cylinder basis gasket 0.5, 10 – Cylinder stud bolt M8x142, 11 – Inlet manifold, 12 – Clamp 23/35mm, 13 – Socket-head screw M6x16, 14 – Intake manifold spacer for Tillotson carburettor, 15 – Tillotson carburettor HW-48A, 16 – Nut M7, 17 – Exhaust washer 8x12x1.5, 18A – Standard Mini Rok exhaust manifold, 18B – Mini Rok exhaust manifold d.16mm (option), 19 – Mini Rok exhaust gasket, 20 – Tillotson carburettor gasket |
---|
