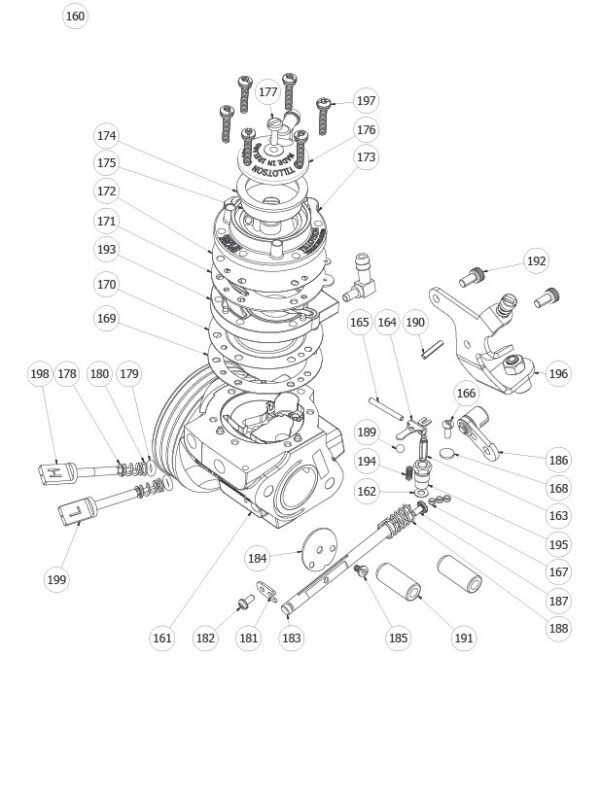

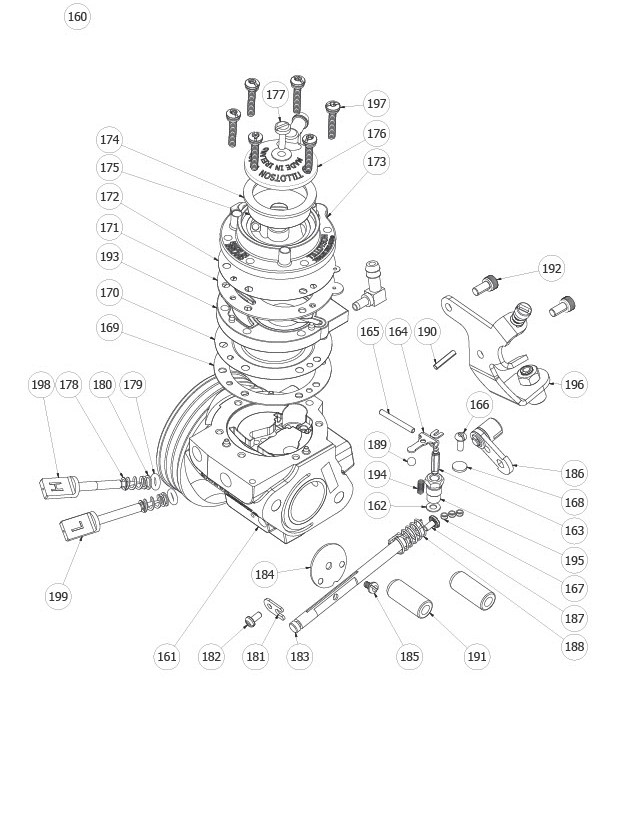

160 – Tillotson Carburettor HW-49A, 161 – Carburettor body HW-48A, 162 – Copper gasket, 163 – Inlet needle, 164 – Inlet valve control lever, 165 – Fulcrum lever pin, 166 – Fulcrum lever screw, 167 – Brass plug, 168 – Welch plug, 169 – Metering gasket, 170 – Diaphragm assembly, 171 – Pump gasket, 172 – Fuel pump diaphragm, 173 – Fuel pump body, 174 – Strainer gasket, 175 – Fuel strainer screen, 176 – Fuel filter cover, 177 – Fuel filter cover screw, 178 – Adjustment screw spring, 179 – Adjustment screw o-ring, 180 – Adjustment screw washer, 181 – Throttle shaft clip, 182 – 4-40 UNC screw, 183 – Throttle shaft, 184 – Throttle shutter, 185 – 4-40 UNC screw, 186 – Throttle lever assembly, 187 – Lever screw, 188 – Throttle return spring, 189 – 4mm brass ball, 190 – Pin, 191 – Carburettor mounting nut, 192 – M4x0.7 screw, 193 – Metering cover assembly, 194 – Inlet tension spring, 195 – Inlet seat, 196 – Accellerator cable support, 197 – 6-32 UNC screw, 198 – M 4×0.5 adjustment screw haut, 199 – 8-32 UNC adjustment screw low
